Optimal Header Bidding

Using Thompson Sampling

Proceedings of KDD 2018

Ad tech

• Automation of digital media sales
• Creation of a spot market (real-time bidding)
• ~$300bn digital ad spending
• Soon (2020?) 50% of all media spending
• Dominated by Google and Facebook
• But constantly evolving

The idealized SSP

In practice

• Lots of market imperfections
• Integration costs
• Business partnerships
• Cross subsidies
• Each SSP has some exclusive demand or supply
• Some publishers don't want to rely on one tech stack
• Hence the idea of Header Bidding

SSP competition

The header bidding problem

• For each impression $i$
• SSP closing ones auction at $p_i$
• Advertizer will pay $p_i$ if winning
• SSP returning $q_i$ to the publisher
• $q_i$ competes with other SSPs (first price)
• SSP wins if $q_i > x_i$ the largest of other SSPs responses
• If winning SSP pays $q_i$ and charges $p_i$
• What is the best $q_i$?

The payoff with full information

• What is the best $q_i$?
• Without per impression competition it could be
$$q_i = p_i\cdot(1-\text{fees})$$
• If $x_i$ is known the SSP tries to maximize
$$R_i(q_i) = \mathbf{1}_{q_i \geq x_i}(p_i - q_i)$$
• $q_i$ should be as small as possible
• But if $q_i$ too small everything is lost

Payoff

The stochastic setting

• $x_i$ drawn from an unknown distribution $f_\theta$
• $f_\theta$ parametrized by $\theta$
• What is the best $q_i$?
• Given $\theta$, the SSP tries to maximize
$$\mathbb{E}\left[R_i(q_i)\right] = (p_i - q_i) F_{\theta}(q_i)$$

Expected payoff

Learning $\theta$

• Given $\theta$, the SSP tries to maximize
$$\mathbb{E}\left[R_i(q_i)\right] = (p_i - q_i) F_{\theta}(q_i)$$
• When $\theta$ is unknown, we have a bandit problem
• The SSP must find trade-off between exploration and exploitation

The bandit problem

• Arms are possible $q_i$s
• Everything conditional on some context $c$
• >10k events/sec
• But many contexts (levels of $p_i$)
• Learning quickly is critical

Trying UCB and Exp3

• Each arm payoff is assumed independent
• Reducing the number of $q_i$ buckets helps
• It captures some of the local correlations and accelerates learning speed

Introducing the auction structure

• Idea
• Learning $f_\theta$ from a parametric familly
• Using Thomson sampling to solve explore vs exploit
• Information really scarce (won or not), $\theta$ should be low-dimensional
• Storing the sequence of bayesian updates impractical
$$\pi_{c,t}(\theta) \propto \pi_{c,0}(\theta) \prod_{i \in \mathcal{D}_{t,c}} \big[F_{\theta}(q_i) \mathbf{1}_{x_i \leq q_i} + (1 - F_{\theta}(q_i)) \mathbf{1}_{x_i > q_i}\big]$$

Particle filter

• Posterior stored as a sample of the true distribution
$$\hat{w}_{c,k,t} = \hat{w}_{c,k,t-1} \times \big[F_{\theta_{c,k,t}}(q_t) \mathbf{1}_{x_t \leq q_t} + (1 - F_{\theta_{c,k,t}}(q_t)) \mathbf{1}_{x_t > q_t}\big]$$
• Weights updated and normalized at each step
$$w_{c,k,t} = \frac{\hat{w}_{c,k,t}}{\sum_{k'=1}^K \hat{w}_{c,k',t}}$$
• $\theta$s are perturbated slightly to account for non-stationarities
• To avoid degeneracy $\Big(\sum_{k=1}^K w_{c,k,t}^2\big)^{-1}$, we resample $\theta$s

Thompson Sampling

• Sample a value $\theta$ from the posterior distribution $\pi_{c_i,t_{i-1}}$
• Compute the bid $q_i$ that would maximize the SSP's expected revenue if $x_i \sim f_{\theta}$ (see below)
• Observe the auction outcome $\mathbf{1}_{q_i \geq x_i}$ and update the posterior $\pi_{c_i,t_{i}}$
• As the particle filter provides a discrete approximation of the posterior distribution, the sampling step is straightforward

Particle Representation

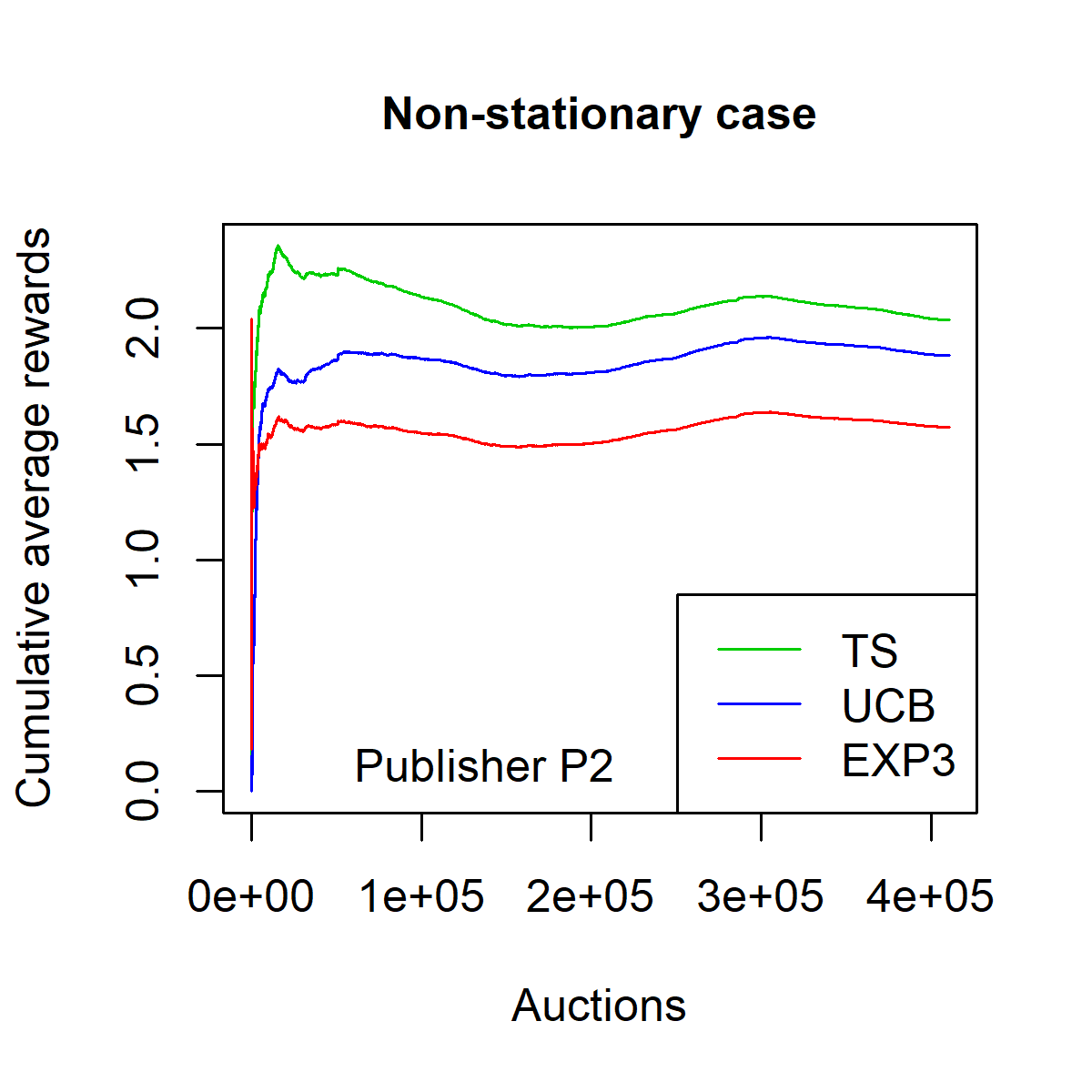

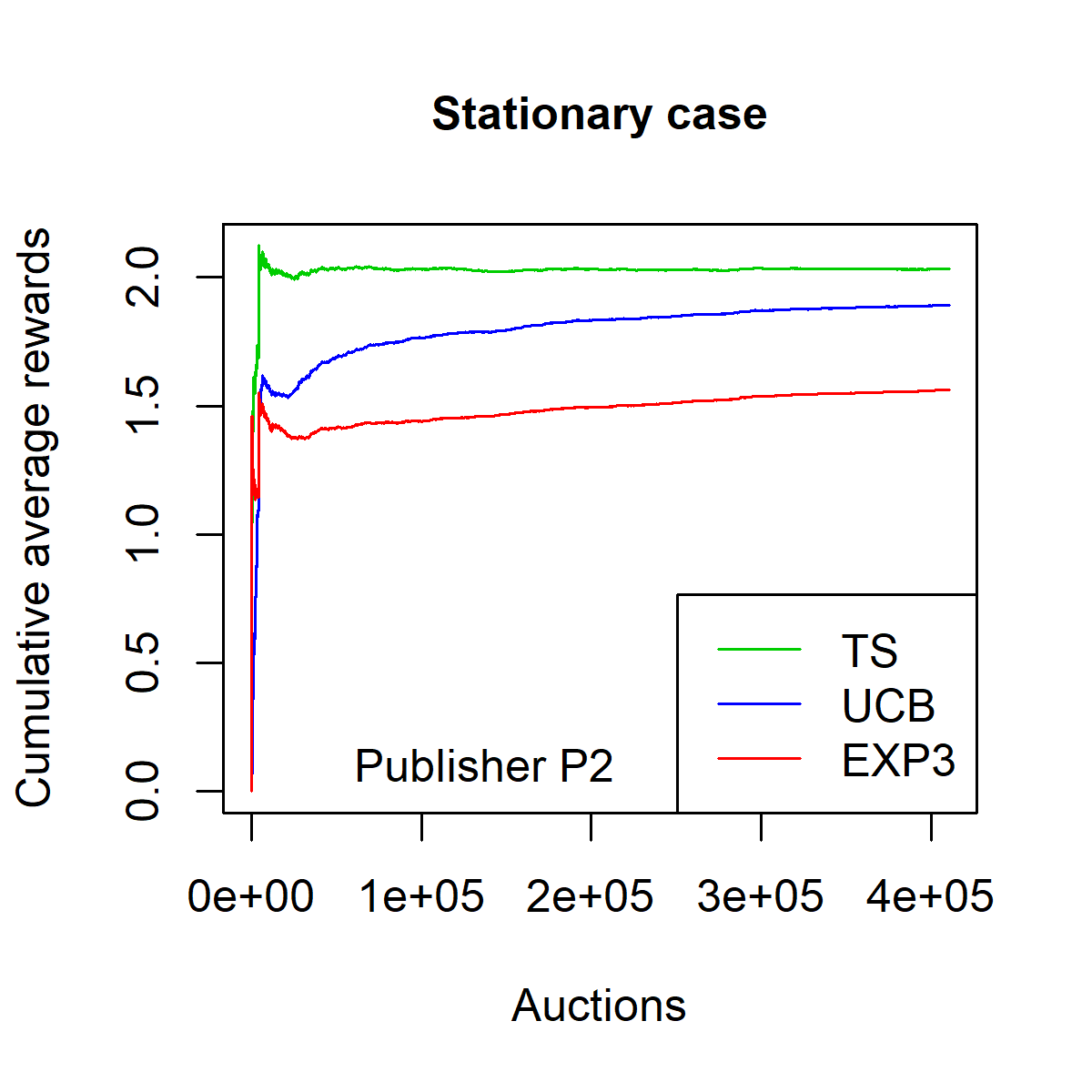

Performance

Thank you
